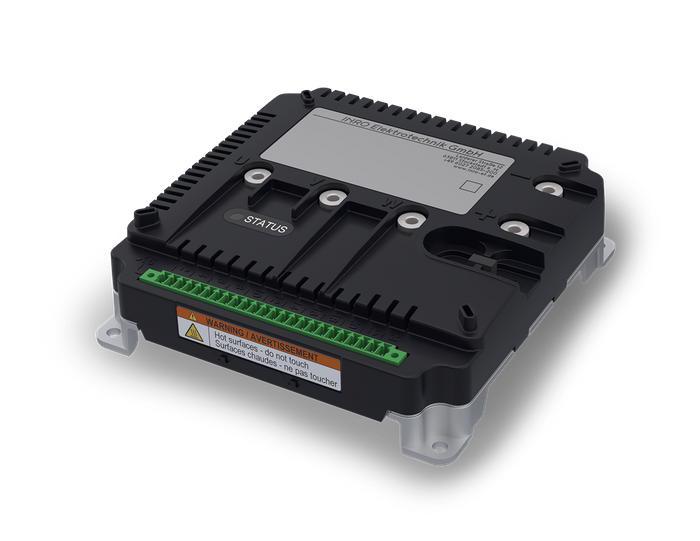

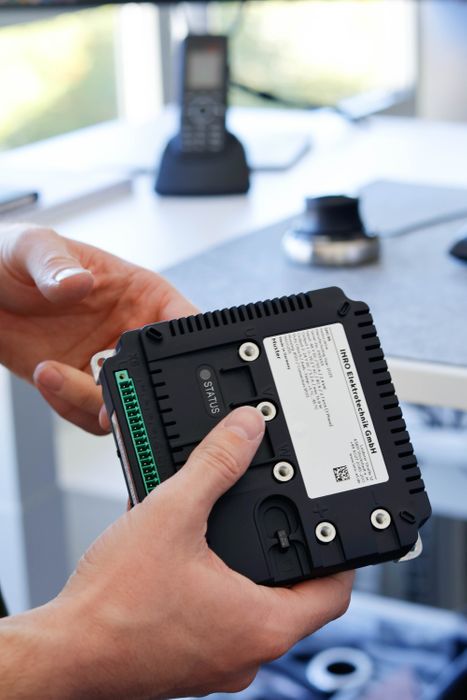

Drive Controller SMC
)
)
)
)
)
)
The Single Motion Control (SMC) is a 1-axis drive controller. It offers a large number of I/Os for reading in sensors and setpoint transmitters as well as for setting outputs and switching loads. This enables you to control all types of machines with a drive, such as traction or pump drives, efficiently, reliably and safely.
Control of various motor types, such as ASM, SRM, BLDC, etc. (also sensorless) Rated battery voltage 48 V Input voltage range +25 V..+59 V Maximum input current 50 A Phase current in continuous operation (S1) 40 Aeff Phase current in short-time operation (S2) 10 s 60 Aeff With integrated current measurement and free-wheeling diode Various bus systems for communication such as CAN bus or MODBUS implemented DC/DC converter for on-board power supply max. 94 W Small and space-saving design with passive cooling plate Dimensions 134 mm x 134 mm x 40 mm Protection class IP 20 Operating temperature range +5 °C to +45 °C (Rated) and +45 °C to +60 °C (with derating) Conformity to EN 61800, UL 61800, CE, cULus, RoHS, REACH, EMC Lifetime 50,000 h Weight 560 g
